CLASSIFICATION
PRODUCT MODEL:PR-210-P0N-BBG
PR-210-P0N-BBG
PRODUCT SPECIFICATION:
Rating:10A 250VAC；
12A 125VAC；
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1890VAC 50Hz(60Hz) For 1 minute；
Insulation Resistance:100MΩ;
Mechanical Life:10,000 cycles (Min)；
Nut Torque:5~14N;
Operating Temperation:-30°C~80°C；
Function: OFF-ON
12A 125VAC；
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1890VAC 50Hz(60Hz) For 1 minute；
Insulation Resistance:100MΩ;
Mechanical Life:10,000 cycles (Min)；
Nut Torque:5~14N;
Operating Temperation:-30°C~80°C；
Function: OFF-ON
Application：
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化
DRAWING

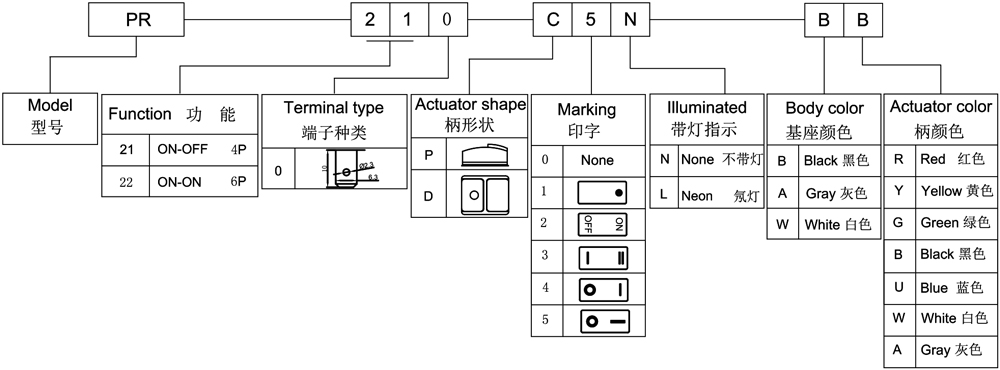

ORDER CODING DIAGRAM
