CLASSIFICATION
PRODUCT MODEL:MR-4-210-C5L-BG-防水帽
MR-4-210-C5L-BG-防水帽
PRODUCT SPECIFICATION:
Rating: 10A 125V AC
6A 250V AC (CQC ENEC CB)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100MΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 550±150gf
Mechanical Life: Over 30,000 cycles
Electrical life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
6A 250V AC (CQC ENEC CB)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100MΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 550±150gf
Mechanical Life: Over 30,000 cycles
Electrical life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
Safety Approval
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化

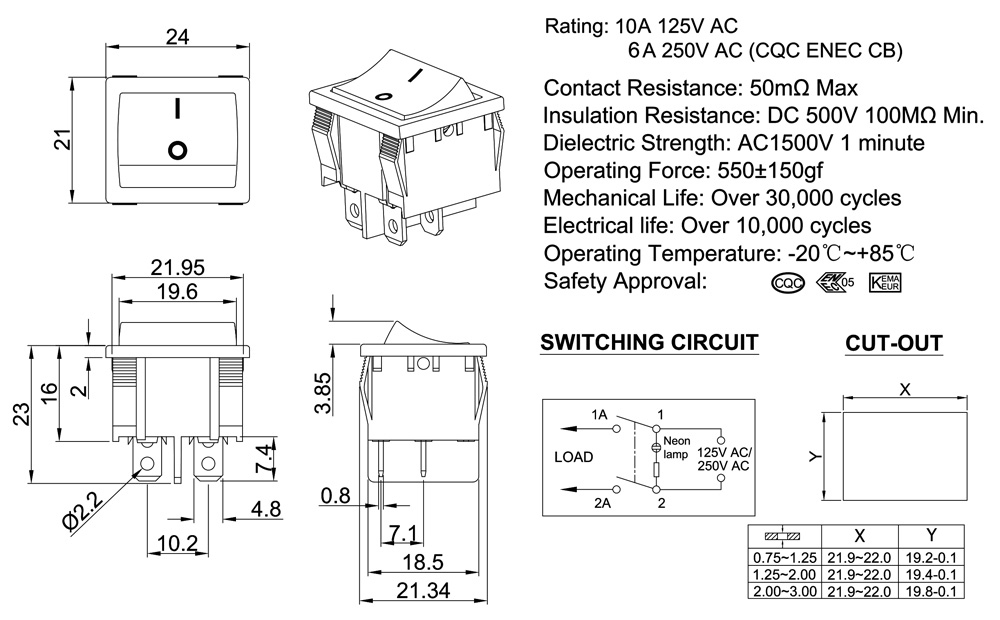

DRAWING
ORDER CODING DIAGRAM
