CLASSIFICATION
PRODUCT MODEL:MR-6-210-C5L-BR+防水帽
MR-6-210-C5L-BR+防水帽
PRODUCT SPECIFICATION:
Rating:12A 125VAC
10A 250VAC (CQC ENEC)
Contact Resistance:20mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Operating Force:450±200gf
Mechanical Life:50,000 Cycles
Load Life:10,000cycles
Operating Temperature:0°C~85°C
Safety Approval
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化

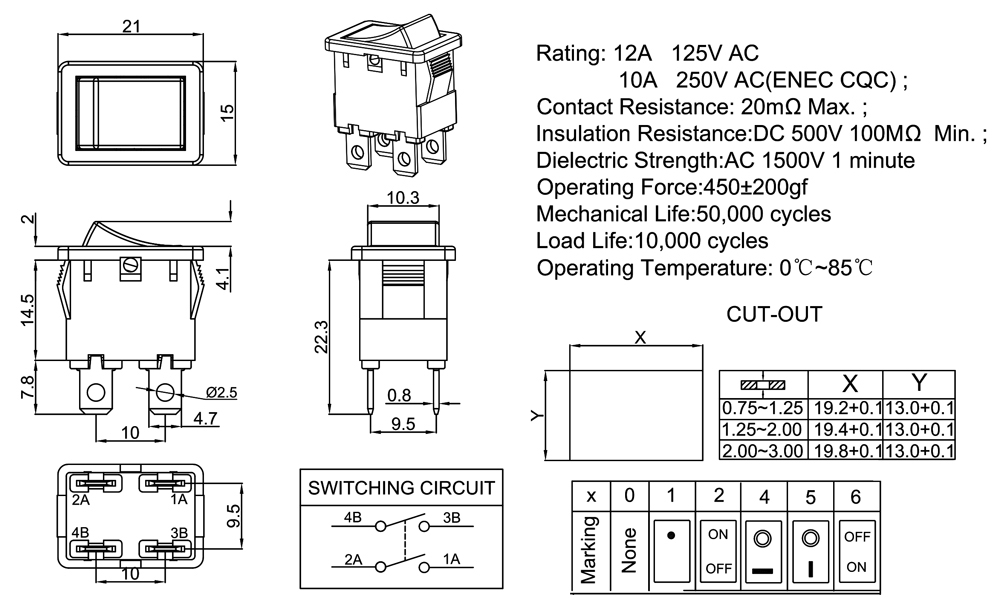

DRAWING
ORDER CODING DIAGRAM
