CLASSIFICATION
PRODUCT MODEL:PSM-12M-FS-RU3-SN-A
PSM-12M-FS-RU3-SN-A
PRODUCT SPECIFICATION:
Rating: 5A/10A/16A 125VAC ;5A/10A16A 250VAC ;
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min. ;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 1.0±0. 4mm
Operating Force: 500±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -25°C~85°C
Protection type: IP40(terminal side), IP67 (Panel waterproof)
Mechanical ollision protection type: IK07.
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min. ;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 1.0±0. 4mm
Operating Force: 500±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -25°C~85°C
Protection type: IP40(terminal side), IP67 (Panel waterproof)
Mechanical ollision protection type: IK07.
Application：
? Outdoor Controls ·戶外控制
? Security Equipment ·安全設備
? Medical Equipment ·醫療設備
? Food Processing Equipment ·食品加工設備
? Military Equipment ·軍用設備
? Industrial Machinery ·工業機械
? Transportation: Mass-Transit, Lift Trucks
·運輸: 大眾運輸, 起重卡車

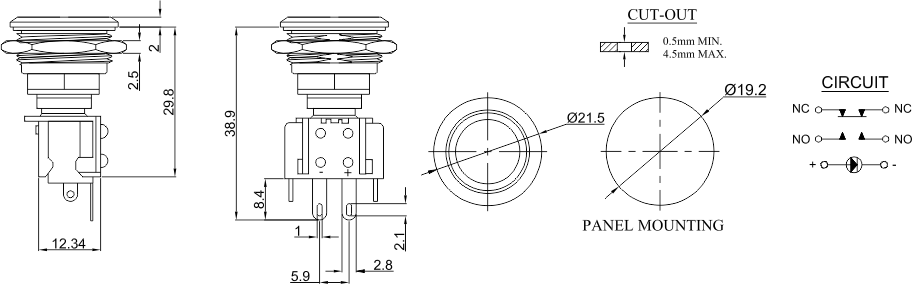

DRAWING
ORDER CODING DIAGRAM
