CLASSIFICATION
PRODUCT MODEL:PSM19-12M-FS-NNN-SN-A
PSM19-12M-FS-NNN-SN-A
PRODUCT SPECIFICATION:
Rating: 5A/10A/16A 125VAC ;5A/10A16A 250VAC ;
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min.;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 1.0±0.4mm
Operating Force: 300±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -30°C~ 105°C
Protection type: IP40 (terminal side), IP67 (Panel waterproof)
Mechanical collision protection type: IK07.
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min.;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 1.0±0.4mm
Operating Force: 300±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -30°C~ 105°C
Protection type: IP40 (terminal side), IP67 (Panel waterproof)
Mechanical collision protection type: IK07.
Application：
? Outdoor Controls ·戶外控制
? Security Equipment ·安全設備
? Medical Equipment ·醫療設備
? Food Processing Equipment ·食品加工設備
? Military Equipment ·軍用設備
? Industrial Machinery ·工業機械
? Transportation: Mass-Transit, Lift Trucks
·運輸: 大眾運輸, 起重卡車

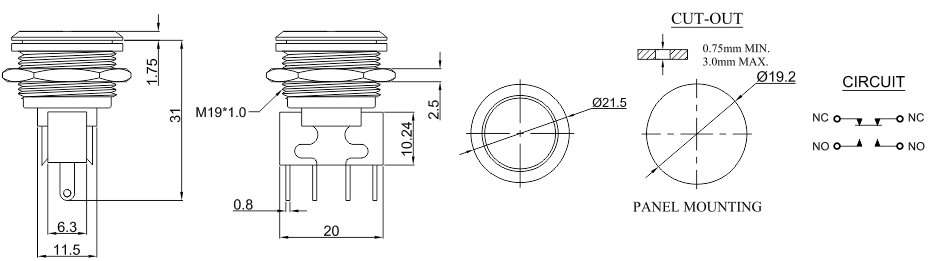

DRAWING
ORDER CODING DIAGRAM
