CLASSIFICATION
PRODUCT MODEL:PBM22-12M-F-RR3-S0
PBM22-12M-F-RR3-S0
PRODUCT SPECIFICATION:
Rating:5A 250VACmax;2A 36VDCmax;
Contact Resistance:50mΩ Max;
Dielectric Strength:1000VAC for 1 Minute;
Total Travel:2.5±0.5mm;
Operating Force:600±200gf
Mechanical Life:200,000cycles;
Load Life:50,000cycles;
Operating Temperature:-20℃~70℃
Function:Momentary
Application：
電子門鎖系統 Electronic lock system
酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

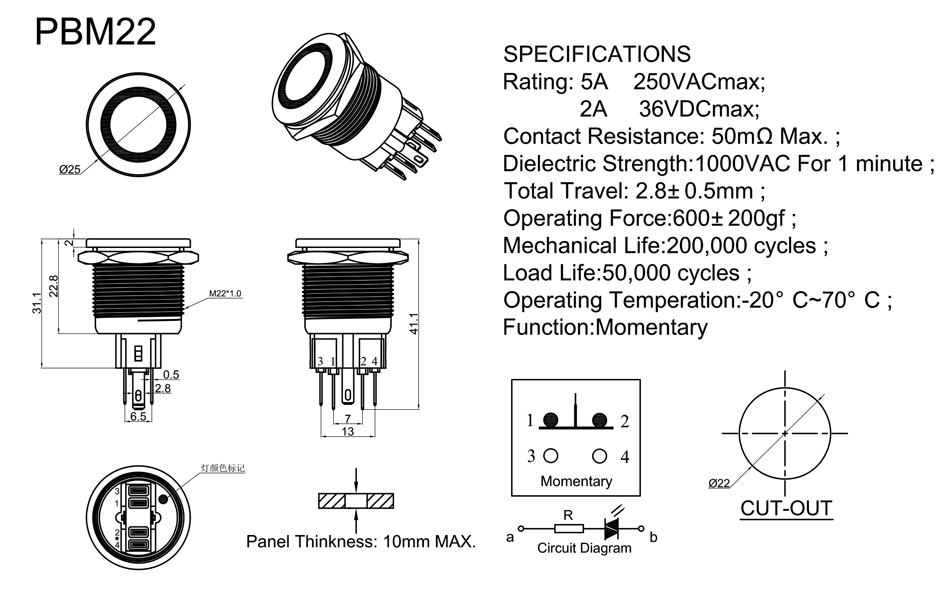

DRAWING
ORDER CODING DIAGRAM
