CLASSIFICATION
PRODUCT MODEL:PS19-22Z-F-PNN-S0
PS19-22Z-F-PNN-S0
PRODUCT SPECIFICATION:
Rating:16A 125VAC;:16A 250VAC;
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100mΩ Min;
Dielectric Strength:AC 1500V 1 minute
Total Travel:5.0±0.5mm
Operating Force:750±200gf
Mechanicai Life:Over 30,000 cycles
Electrical Life:Over 10,000 cycles
Operating Temperature:-20℃ ~70℃
Protection type:IP40(terminal side)
IP65(Panel waterproof)
Mechanical collision protection type:IK07
Function:OFF-ON
Application：
電子門鎖系統 Electronic lock system
酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

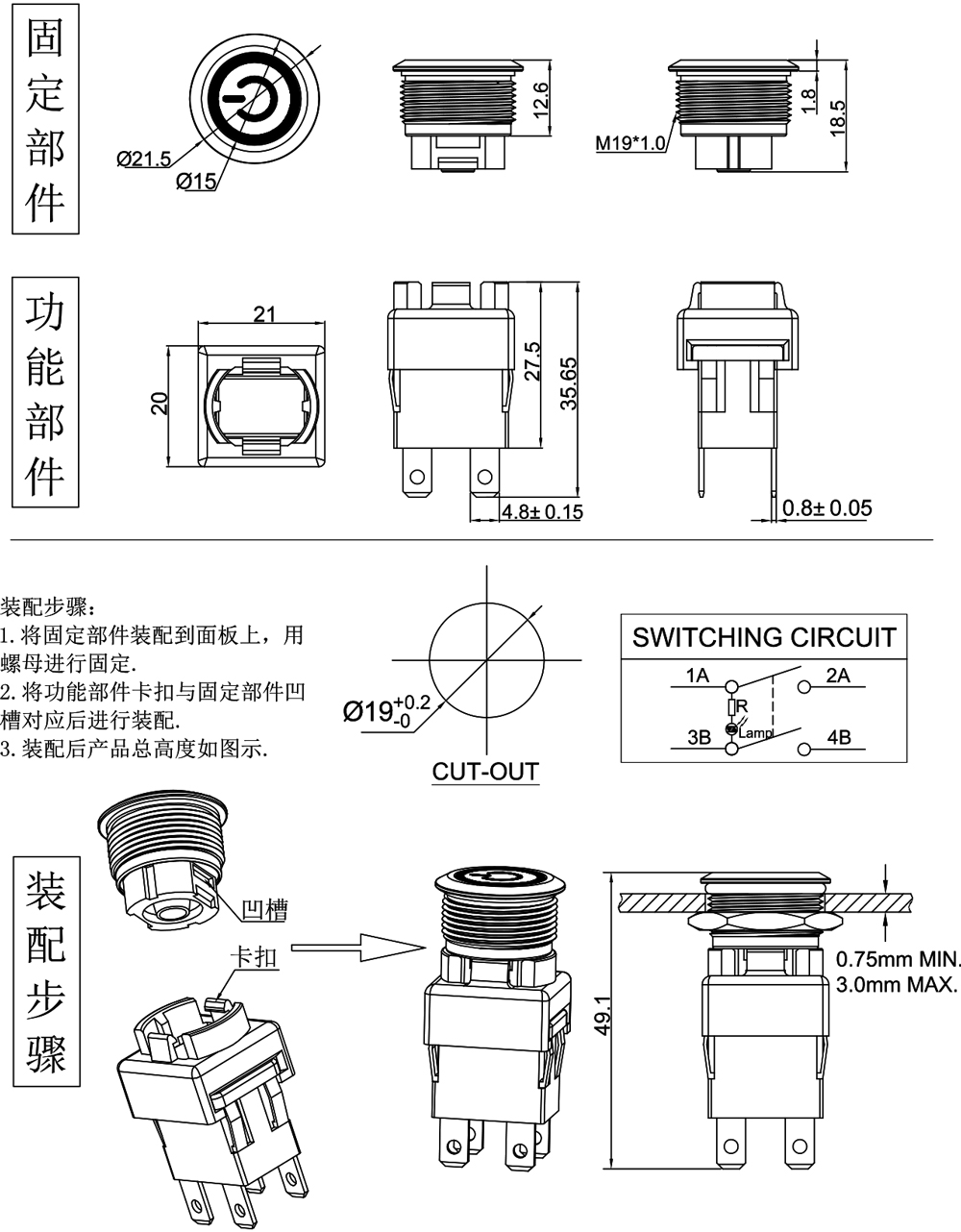

DRAWING

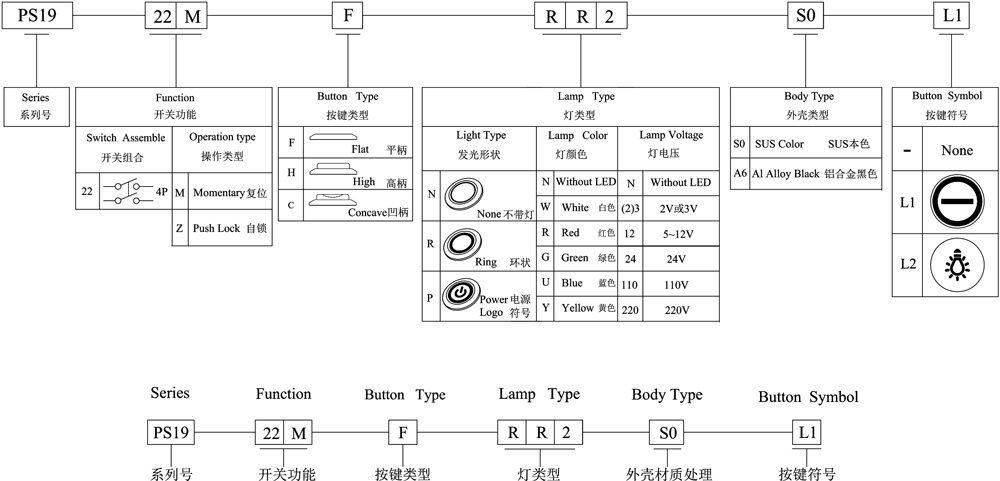

ORDER CODING DIAGRAM
