CLASSIFICATION
PRODUCT MODEL:TS4-2YN-0
TS4-2YN-0
PRODUCT SPECIFICATION:
Circuit:SPST SPDT
Current Rating:30mA
Voltage Rating:30VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact Resistance:100mΩ Max .(initial)
Insulation Resistance:100MΩ Min.
Operating Force:250±50gf
Total Travel:1.0±0.2mm
Opearating Force:100,000 Cycles Min
Soldear Specifications:260℃ for 5 Seconds
Function:Momentary
Openrating Temperature:-20℃~+70℃
Application：
Video processor 視頻處理器
Professional Audio 專業音響
Instruments and meters儀器儀表
Computer Peripherals電腦外設
Cashier Equipment 收銀設備
Cashier Equipment 收銀設備

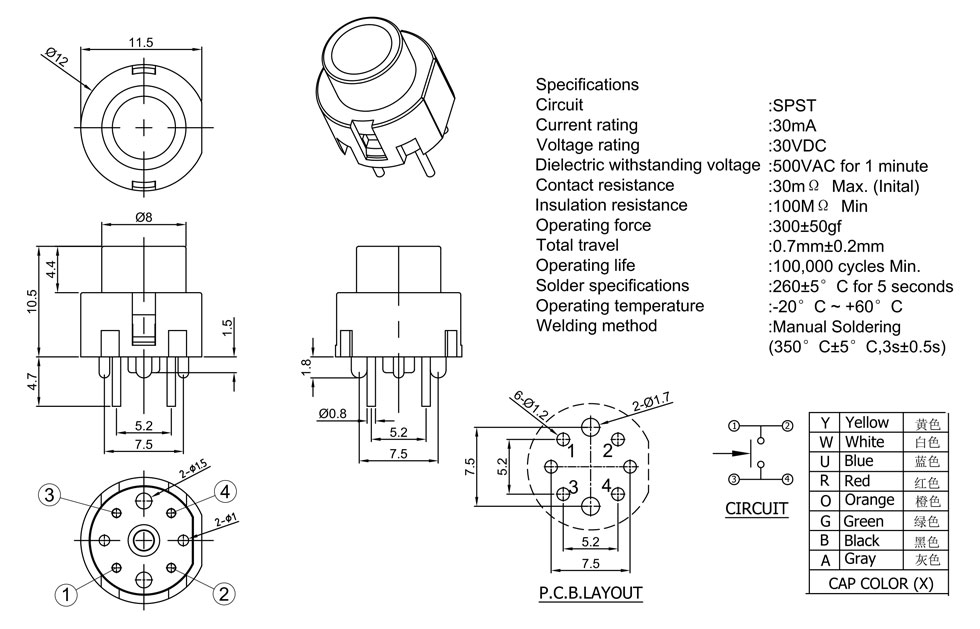

DRAWING
ORDER CODING DIAGRAM
