CLASSIFICATION
PRODUCT MODEL:PB15-U1U
PB15-U1U
PRODUCT SPECIFICATION:
Circuit :SPST
Current Rating :100mA
Voltage Rating :42VDC 42VAC
Dielectric withstanding vltage
:2000VAC for 1 minute
Contact Resistance :100mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Opearating life :2,000,000 Cycles Min
Soldear Specifications :256°C for 5 Seconds
Openrating Temperature:-20°C~+70°C
Current Rating :100mA
Voltage Rating :42VDC 42VAC
Dielectric withstanding vltage
:2000VAC for 1 minute
Contact Resistance :100mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Opearating life :2,000,000 Cycles Min
Soldear Specifications :256°C for 5 Seconds
Openrating Temperature:-20°C~+70°C
Application：
Stage Lighting control equipment
舞臺燈光控制設備
Video processor 視頻處理器
Matrix Controller 矩陣控制器
Security equipment 安防設備
Cashier Equipment 收銀設備

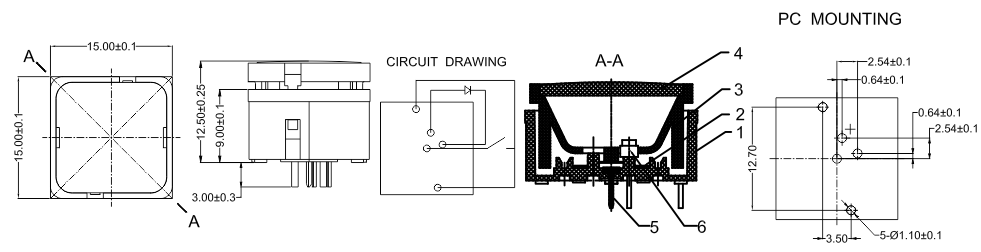

DRAWING
ORDER CODING DIAGRAM
