CLASSIFICATION
PRODUCT MODEL:S-03F-22+MR-2
S-03F-22+MR-2
PRODUCT SPECIFICATION:
Rating: 10A 250V AC(UL CUL)
10A 250V AC(ENEC K-MARK)
10A 250V AC (CCC)
lnsulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC2000V 1 minute
MATERIAL:
Body:PA,UL rated:94 V-2 Min;
Terminal:Brass,Silver or Ni plated
10A 250V AC(ENEC K-MARK)
10A 250V AC (CCC)
lnsulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC2000V 1 minute
MATERIAL:
Body:PA,UL rated:94 V-2 Min;
Terminal:Brass,Silver or Ni plated
Application：
Circuit overload Protection電路過載保護Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫療設備
Instruments and meters 儀器儀表

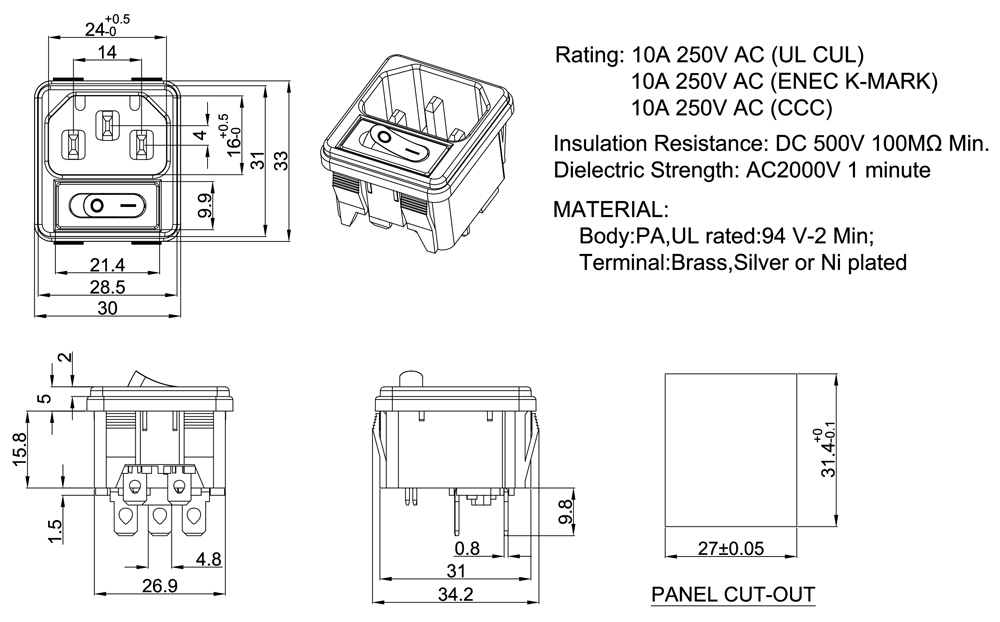

DRAWING
ORDER CODING DIAGRAM
