CLASSIFICATION
PRODUCT MODEL:PBM8-M-H-RU3-S0
PBM8-M-H-RU3-S0
PRODUCT SPECIFICATION:
Circuit :SPST
Current rating :0.5A
Voltage rating :250VAC
Dielectric withstanding voltage :1000VAC for 1 minute
Contact resistance :50mΩ Max
Inslation resistance :100MΩ Min
Travel :2.0mm±0.5mm
Operating Force :600±200gf
Mechanical Life :Over 100,000 cycles
Electrical Life :Over 50,000 cycles
Manual Welding :350°C for 3 seconds
Function :OFF-ON
Operating temperature : -20°C ~ +85°C
Level of Protection : IP65
Current rating :0.5A
Voltage rating :250VAC
Dielectric withstanding voltage :1000VAC for 1 minute
Contact resistance :50mΩ Max
Inslation resistance :100MΩ Min
Travel :2.0mm±0.5mm
Operating Force :600±200gf
Mechanical Life :Over 100,000 cycles
Electrical Life :Over 50,000 cycles
Manual Welding :350°C for 3 seconds
Function :OFF-ON
Operating temperature : -20°C ~ +85°C
Level of Protection : IP65
Application：
電子門鎖系統 Electronic lock system酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

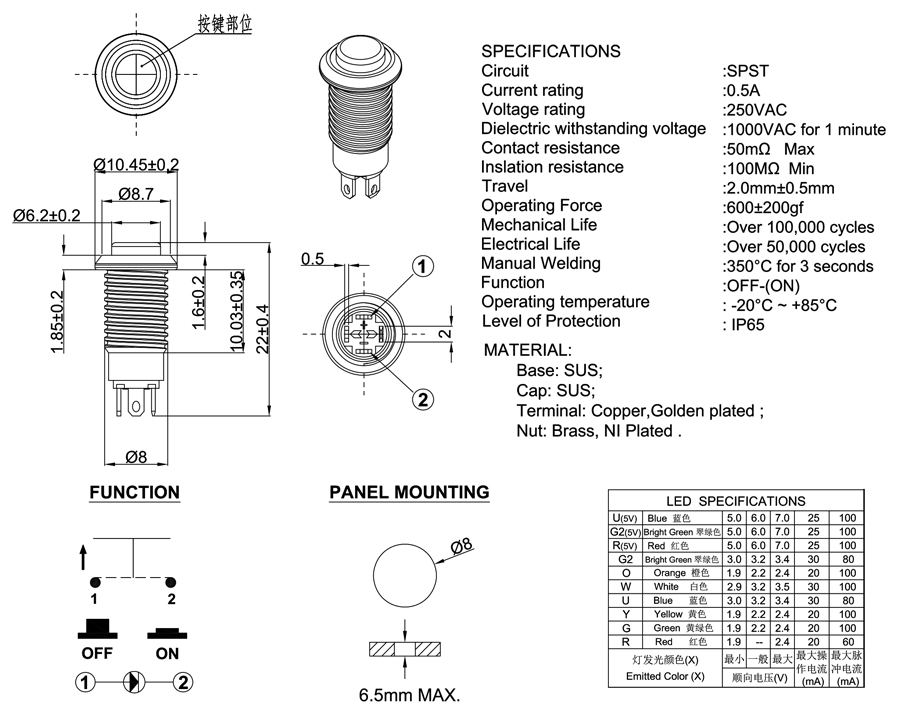

DRAWING
ORDER CODING DIAGRAM
