CLASSIFICATION
PRODUCT MODEL:PBM22-12M-F-RR3-S0
PBM22-12M-F-RR3-S0
PRODUCT SPECIFICATION:
Rating: 5A 250VAC ;
2A 36VDC ;
Degree of protction:lP67;
Contact Resistance: 50mΩ Max.;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel: 2.8±0.5mm ;
Operating Force:600±200gf ;
Mechanical Life:200,000 cycles ;
Load Life:50,000 cycles ;
Operating Temperation:-20°C~85°C;
Function: OFF-(ON)
2A 36VDC ;
Degree of protction:lP67;
Contact Resistance: 50mΩ Max.;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel: 2.8±0.5mm ;
Operating Force:600±200gf ;
Mechanical Life:200,000 cycles ;
Load Life:50,000 cycles ;
Operating Temperation:-20°C~85°C;
Function: OFF-(ON)
Application：
電子門鎖系統 Electronic lock system酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

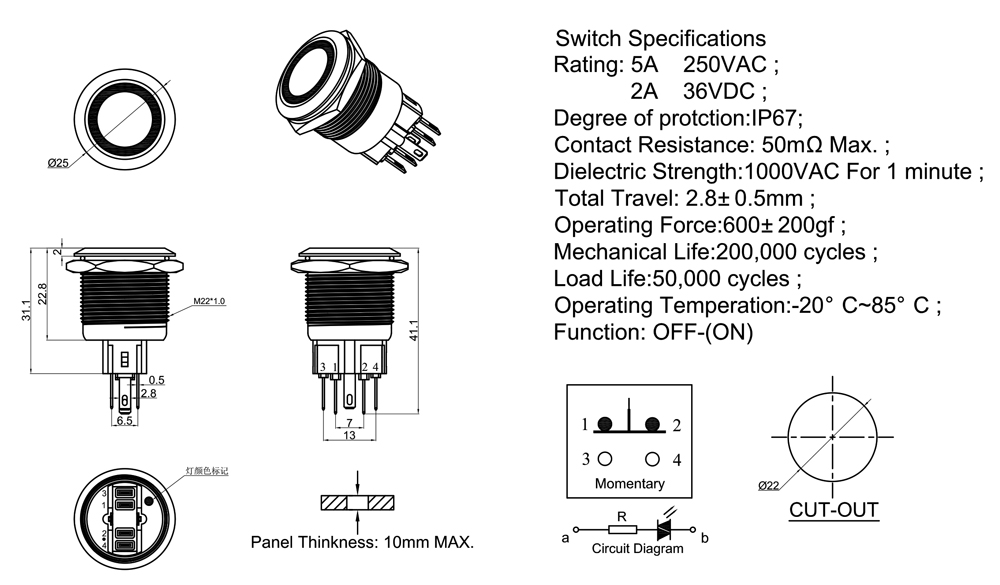

DRAWING
ORDER CODING DIAGRAM
