CLASSIFICATION
PRODUCT MODEL:TS55-W-P
TS55-W-P
PRODUCT SPECIFICATION:
Rating:50mA, DC 12V
Contact Resistance:100mΩ Max
Insulation Resistance:DC 500V 1M±5s 100 Mw
Dielectric Strength: AC 250V 1M±5s
Operating Force(OF):160±50gf
Life:1,000,000 CYCLES
Operating Temperature Range:-40°C - +85°C
Storage Temperature Range: -40°C - +85°C
Contact Resistance:100mΩ Max
Insulation Resistance:DC 500V 1M±5s 100 Mw
Dielectric Strength: AC 250V 1M±5s
Operating Force(OF):160±50gf
Life:1,000,000 CYCLES
Operating Temperature Range:-40°C - +85°C
Storage Temperature Range: -40°C - +85°C
Application：
Audio / Visual 音響/視聽設備Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備

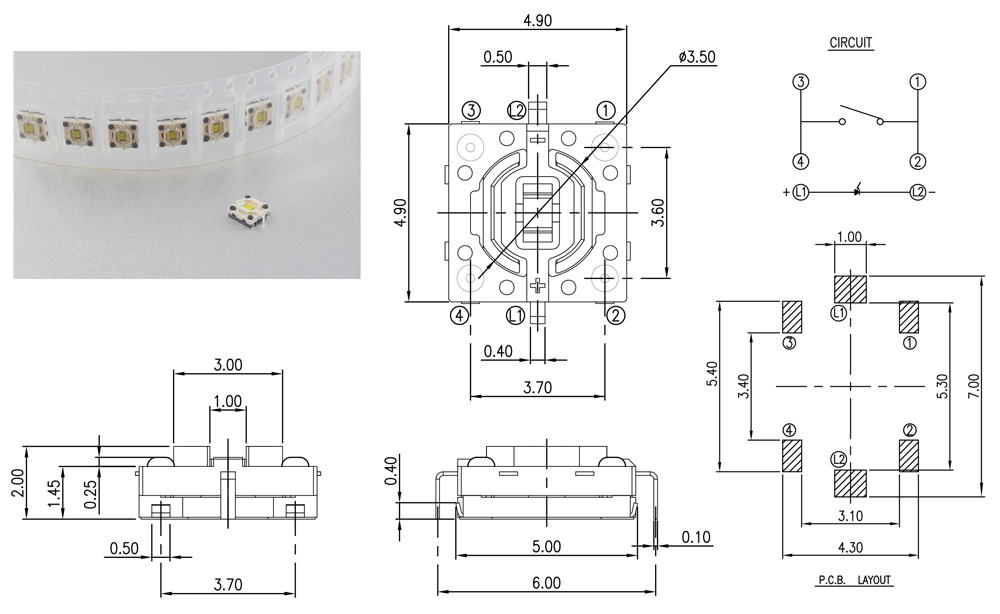

DRAWING
ORDER CODING DIAGRAM
