CLASSIFICATION
PRODUCT MODEL:T7011-G
T7011-G
PRODUCT SPECIFICATION:
SPECIFICATIONS
Rating:15A 125 VAC Or 10A 250 VDC
Contact Resistance:30 mΩ (Max)
Insulation Resistance:DC 500v 100MΩ (Min)
Dielectric Strength:1 500VAC 1 Minute
Rating:15A 125 VAC Or 10A 250 VDC
Contact Resistance:30 mΩ (Max)
Insulation Resistance:DC 500v 100MΩ (Min)
Dielectric Strength:1 500VAC 1 Minute
Application：
取暖器 heater電風扇 Electric fan
監控攝像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment

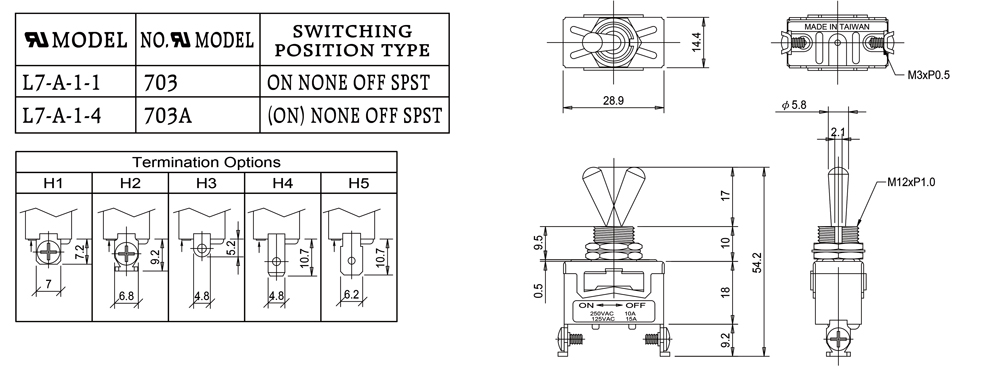

DRAWING
ORDER CODING DIAGRAM
