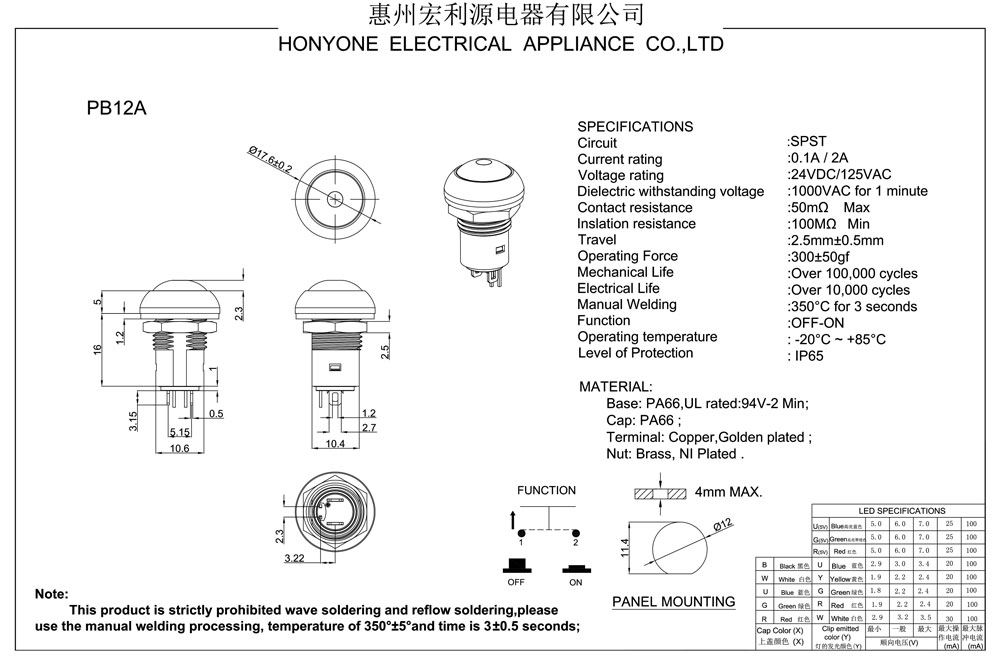

產品型號：PB12-A-2-BW(lock)
PB12-A-2-BW(lock)
產品規格：
SPECIFICATIONS
Circuit :SPST
Current rating :0.2A
Voltage rating :250VAC
Dieletric withstanding voltage:1000VAC for 1 minute
Contact resistance :50mΩ Max
Inslation resistance :100MΩ Min
Travel :2.0mm±0.5mm
Operating Force :500±150gf
Mechanical Life :Over 200,000 cycles
Electrical Life :Over 30,000 cycles
Manual Welding :350°C for 3 seconds
Function :OFF-ON
Operating temperature : -20°C~+85°C
Level of protection :IP67
應用領域：
APPLICATIONS
? Communications 通信設備
? Data entry 數據錄入設備
? Hand-held control modules 人工控制手柄
? Outdoor controls 戶外電子設備
? Mass transport controls 公共交通車輛控制
? Instrumentation 儀器儀表
