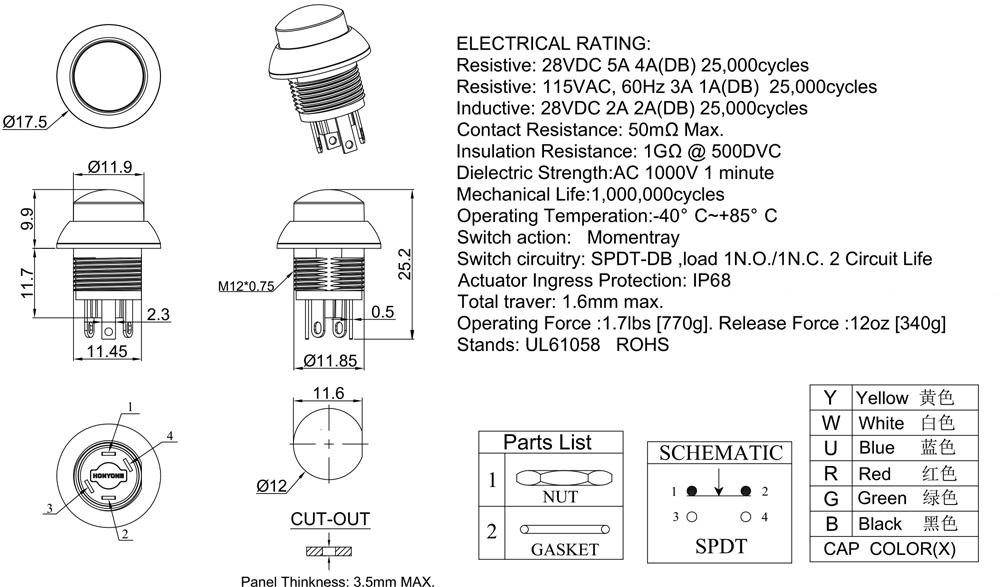

產品型號：PA12-12-H-BU-1
PA12-12-H-BU-1
產品規格：
Resistive: 28VDC 5A 4A(DB)25,000cycles
Resistive: 115VAC,60Hz 3A 1A(DB)25,000cycles
Inductive: 28VDC 2A 2A(DB)25,000cycles
Contact Resistance: 50mΩ Max.
lnsulation Resistance: 1GΩ @ 500DVc
Dielectric Strength:AC 1000V 1 minute
Mechanical Life:1,000,000cycles
Operating Temperation:-40°C~+85°c
Switch action: Momentray
Switch circuitry: SPDT-DB，load 1N.O./1N.C. 2 Circuit Life
Actuator Ingress Protection: IP68
Total traver: 1.6mm max.
Operating Force :1.7lbs [770g]. Release Force :12oz [340g]
Stands: UL61058 ROHS
應用領域：
? Electronic handle 電控手柄
? Off-road transportation 戶外交通運輸
? Joysticks 操縱桿
? Typically used in cranes 起重機
? Construction equipment 建筑工程機械
? Agricultural equipment 農業設備
? Mining,equipment. 采礦設備
? Computers & network equipment 電腦周邊設備
