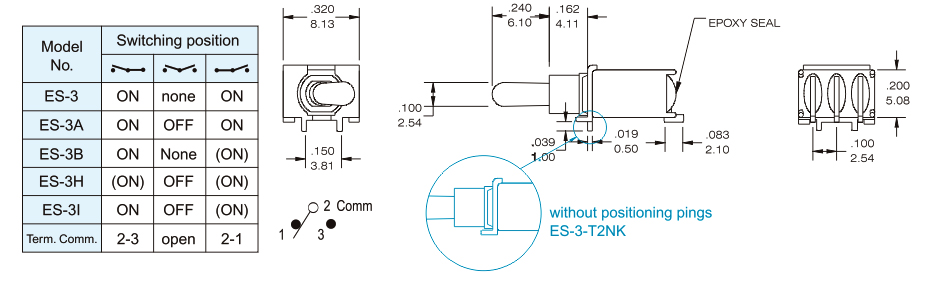

產品型號：ES-3-T2MK
ES-3-T2MK
產品規格：
Contact Rating: R- 0.4 VA max @ 20 V AC or DC
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
ESD Resistant Option: P2 insulating actuator
only: 9,000 VDC min. @ sea level,actuator to terminals.
Degree of Protection: IP67
Operating Temperature: -30°C to 85°C
SMT type (backward) Horizontal actuation
ESD protection available
Tape & reel packaging available
Configuration: SPDT
應用領域：
取暖器 heater
電風扇 Electric fan
監控?cái)z像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment
